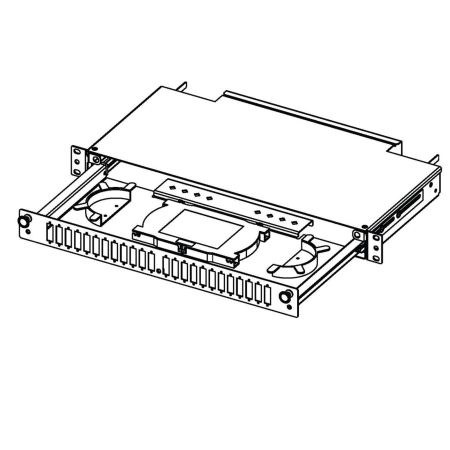

1RU Fiber Termination Patch/Splice Panel
The RailSlide1RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 48 fibers is desired. This solution allows for easy access to the front patch cords as well as the splice trays and pigtails after being pulled out. Mounted on telescopic runners to ensure the tray slides in and out with a smooth action. Standard panels are available empty for complete field configuration, half-loaded with adapter plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length. The panel also offers multiple cable entry solutions, up to 2 standard cable entry points for, loose tube, tight buffer, preterminated and steel tape armoured cable. Each panel has integrated strength member tie positions.
Features
- Accepts loose tube, distribution and pre terminated cables
- Changeable adapter panels
- Captive thumb screw for fixing the tray
- Pulled-open front pulled-out tray
- Optional splice tray kit for on site conversion to patch and splice panel
Specifications
- Cold Roler Steel
- Durable textured powder coat finish available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Front cable manager for patch cords
- Front and back side mounting options
- Standard cable stub location is left/right side
- Optional cable stub location is rear
Applications
- Telecommunications closets
- Data Centers
- Customer Premise
- LAN / WAN Networks
- Central Offices / Headends
- Hubs / Cabinets / Remote Terminals
- FTTH / FTTB Networks

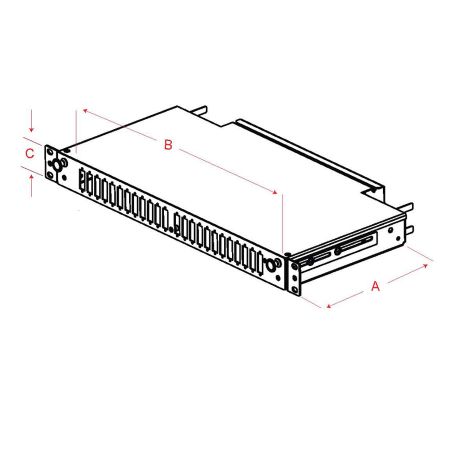

Dimensions
- Depth A : 280 mm
- Width B : 482.6 mm
- Height C : 44.45 mm
- Rack Units : 1
- Capacity : 24/48
- Unloaded Weight : 1.7 kg
Order Number
- ST-102031-CC : RailSystem 1RU Fibre Optic Termination Panel, 19" - Sliding with Telescopic Rails, without front panel, Colour:Black- RAL9005 or Light Grey-RAL7035, (1 ea. PG16 Plastic Gland, 1 ea. 50 cm Plastic Spiral Tube Ø13mm, 4ea. 2,5mmX10 Cable Ties, 2 ea. Plastic Snap Latches, 4 ea. Plastic Half Round Spools for Bend Radius )
- ST-102031-CC.01 : 12 ST or 12 LC (D-hole) 1U Front Panel
- ST-102031-CC.02 : 24 ST or 24 LC (D-hole) 1U Front Panel
- ST-102031-CC.03 : 24 SC Duplex Vertical 1U Front Panel
- ST-102031-CC.04 : 12 SC Duplex Vertical 1U Front Panel
- ST-102031-CC.05 : 12 LC Duplex or 12 E2000 Simplex or 12 SC Simplex 1U Front Panel
- ST-102031-CC.06 : 24 LC Duplex or 24 E2000 Simplex or 24 SC Simplex 1U Front Panel
*Ordering Information : CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
