1RU Fiber Termination Patch/Splice Panel
The PivotSystem1RU Fiber Termination Patch/Splice Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 48 fibers is desired.

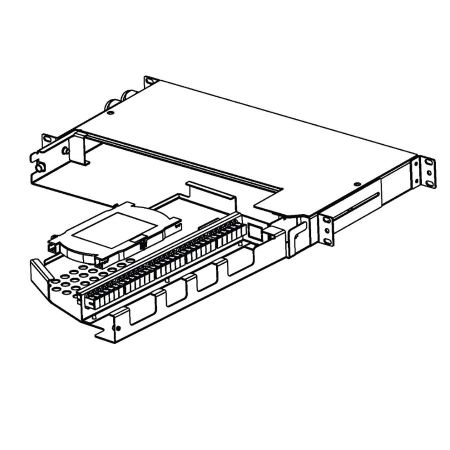

This solution allows for easy access to the front patch cords as well as the splice trays and pigtails after being swing out. Standard panels are available empty for complete field configuration, half-loaded with adapter plates for field termination and cable assembly installation, or stubbed with a factory-installed cable assembly of a user specified length.
Features
- Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments
- Most common connector styles and types available
- Compatible with industry standard equipment frames
- Modular design
- Swing-open front swing-out tray
- Optional splice tray kit for on site conversion to patch and splice panel Specifications
- Aluminum Construction per ASTMB209
- Durable textured powder coat finish available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Standard density: up to 24 fiber, High density: up to 48 fiber
- Front and back side mounting options
- Standard cable stub location is leftside
- Optional cable stub location s is rear
Specifications
- Aluminum Construction per ASTMB209
- Durable textured powder coat finish available in black or white
- Universal 19/21" EIA/TIA rack compatibility
- Standard density: up to 24 fiber,High density: up to 48 fiber
- Front and back side mounting options
- Standard cable stub location is left/right side
- Optional cable stub location s is rear
Applications
- Telecommunications closets
- Data Centers
- Customer Premise
- LAN / WAN Networks
- Central Offices / Headends
- Hubs / Cabinets / Remote Terminals
- FTTH / FTTB Networks

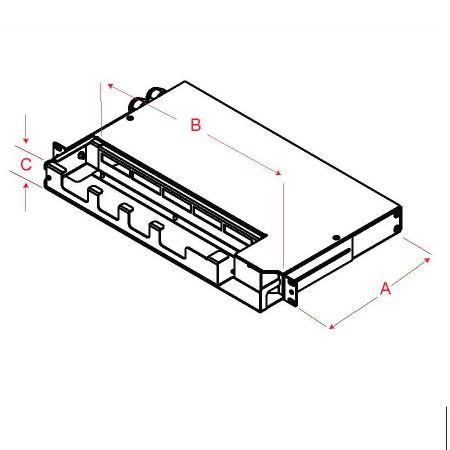

Dimensions
- Depth A : 280 mm
- Width B : 430 mm
- Height C : 44 mm
- Rack Units : 1
- Capacity : 24/48
- Unloaded Weight : 1.7 kg
Order Number
- ST-102041-CC :PivotSystem 1RU Fibre Optic Termination Panel,19" - Pivot Type without front plate, Colour: Black-RAL9005 or Light Grey-RAL7035, (2pcs. PG16 Plastic Gland, 1pcs. 50 cm Plastic Spiral Tube Ø8mm, 2pcs. Plastic Dust Cover for Cable Entries 2pcs. Adhesive Bunny Clips, 4pcs. 2,5mmX10 Cable Ties)
- ST-102041-CC.01 : 24 LC Duplex or 24 E2000 Simplex or 24 SC Simplex 1U Front Panel
- ST-102041-CC.02 : 12 SC Duplex Vertical 1U Front Panel
- ST-102041-CC.03 : 24 LC Duplex or 24 E2000 Simplex or 24 SC Simplex Vertical 1RU Front Plate
- ST-102041-CC.04 : 24 LC Duplex or 24 E2000 Simplex or 24 SC Simplex Horizontal 1RU Front Plate
- ST-102041-CC.05 : 12 LC Duplex or 12 E2000 Simplex or 12 SC Simplex 1RU Front Plate
- ST-102041-CC.06 : 24 ST or 24 FC (D-Hole) 1RU Front Plate
- ST-102041-CC.07 : 12 ST or 12 FC (D-Hole) 1RU Front Plate
*Ordering Information :
CC=LG for Light Grey RAL 7035 & BL for Black RAL 9005 for customers to define while ordering.
